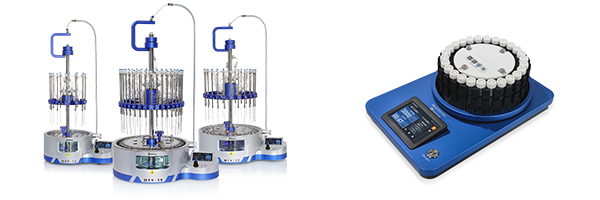

MFV Smart Nitrogen Concentrator MultiVortex Shakers & Mixers

MFV Smart Nitrogen Concentrator

Detelogy hot sale products, the MFV series smart nitrogen concentrator, which leads the innovation on the classic disc host. All instruments have performance advantages, such as grouping control of nitrogen blowing channels,nitrogen blowing needle can be raised and lowered with one key, clear digital valve, 5-inch high-definition touch screen control, etc. It also can hold various test tubes, centrifuge tubes,pear-shaped bottles,round-bottomed flasks, beakers and other concentrated tubes.

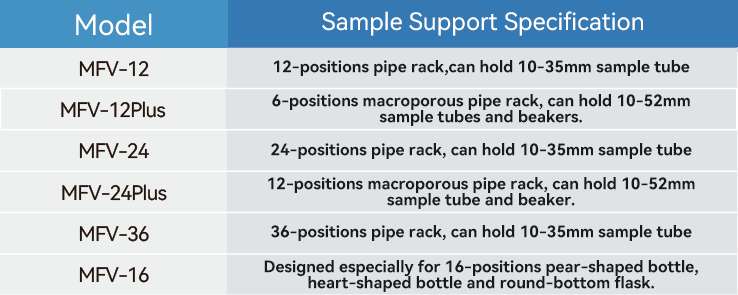

* Racks can be customized according to requirements.

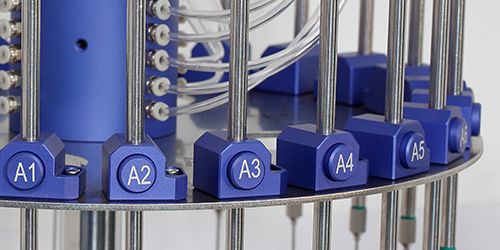

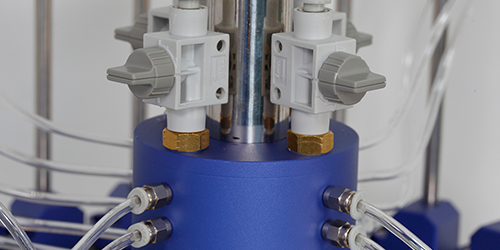

Sample channel grouping control

★The nitrogen blowing channels can be switched on and off quickly without adjusting them one by one by grouping controller.

★The different nitrogen blowing channels can be freely combined to start, thus users can effectively save nitrogen.

★The controller orderly regulates the nitrogen blowing channel in groups, the sample rack rotates freely, thus the nitrogen pipeline is not easy to knot.

The nitrogen blowing needle can be raised and lowered with one key

★Press the button to adjust the height of the nitrogen blowing needle according to the sample liquid level at any time, and fix it after loosening.

★The position of the nitrogen blowing needle can be adjusted to ensure that the needle in the center of the sample liquid level.

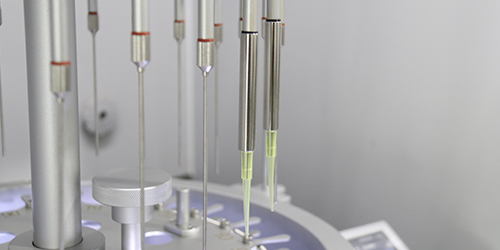

Nitrogen blowing needle can be quickly changed

★The nitrogen blowing needle is made of 316 stainless steel, which supports various cleaning and disinfection methods.

★Two-application nitrogen blowing syringe,which can hold disposable pipette tips for better compatibility.

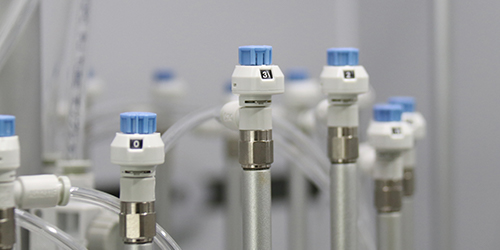

Digital scale valve

★The airflow intensity of the corresponding channel can be clearly adjusted via the numerical display of each nitrogen blowing channel.

★the airflow of each nitrogen blowing channel can be set to the same gear, which can effectively ensure parallelism when concentrating multiple samples

★The unnecessary nitrogen blowing channel can be completely closed to avoid the waste of nitrogen.

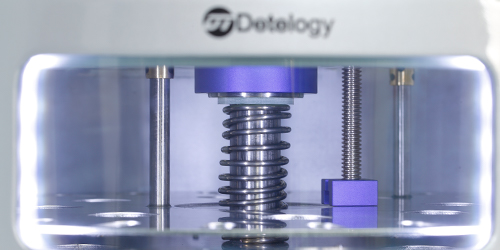

Curved water bath observation window

★Users can observe the sample status at any time without suspending the concentration process or lifting the sample tube rack

★The lighting function can be turned on,therefore the observation could be clearer, and it is convenient to adjust the nitrogen blowing needle and observe the water volume in the water bath.

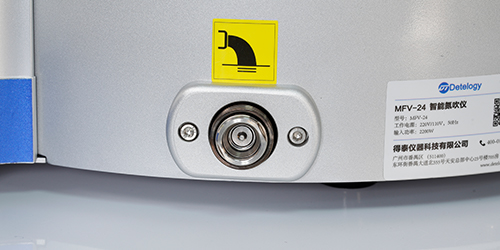

Convenient quick-insertion drainage

★The water bath module is treated by protective coating process,therefore its durability could be better than others.

★With quick plug-in drain, it is convenient to change the water in the water bath regularly and prolong its lifespan.

Integrated touch screen control

★5-inch touch color screen control, which can display the water bath temperature, nitrogen pressure and concentration time.

★PID technology can accurately control the temperature, and it can be set with automatic preheating and will alarm prompt automatically after the concentration is completed.

MultiVortex shaker & mixer

 Circular vortex oscillation can fully mix the sample matrix with solvent, dispersed filler and extraction salt in liquid-liquid and solid-liquid, and is used in sample preparation such as food, fertilizer, cosmetics, biological tissues, etc. In recent years, the emerging QuECHERS rapid sample preparation technology, one MultiVortex shaker & mixer can adopt higher rotation speed on the basis of high-throughput pretreatment, which can easily realize multi-stage automatic variable-speed vortex operation.

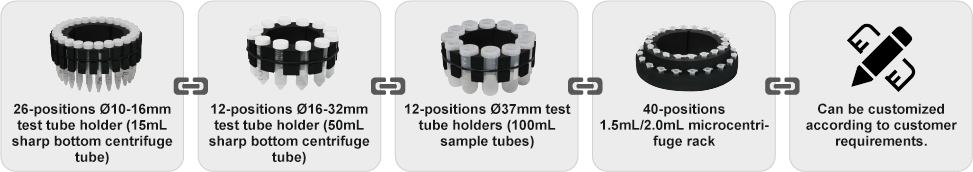

High throughput, can hold various sample tubes:

High rotating speed, dealing with all kinds of insoluble samples.

★Rotational speed range: 200-3000rpm, 3mm circumferential amplitude

★Easily deal with all kinds of solutions, dispersed fillers and extracted salts.

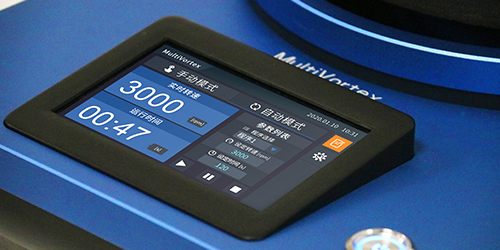

High-definition screen, real-time monitoring and storage method

★The 5-inch touch screen supports automatic program mode, which can be started and stopped at any time.

★12 vortex method programs can be stored according to different samples.

★In each method, six automatic speed changes can be set,and the speed can increase gradually.

Intelligent and efficient application method (example)

Method 1: Detection of soil pesticide residues

Weigh 10 g of sample (accurate to 0.01 g), add 10 mL of water and 10 mL of acetonitrile into 100 mL plastic centrifuge tube, put the configured sample on a 12-positions disc test rack, set up the method program, add multi-stage variable speed, vortex oscillation for 10 min, start and stop at any time during operation, the  buzzer will alarm automatically after it finished.

Add 5 g ~ 7 g sodium chloride, vortex for 1 more min, and then set the variable speed vortex at 3000 r/min for 5 min.

Take the supernatant to the solid phase extraction column, and collect all the filtrate. Blow the eluent with nitrogen in a water bath (the temperature is set at 50℃), adjust the nitrogen blowing needle to an appropriate height, slowly blow in nitrogen, make the liquid level continuously shake slightly, concentrate it to a nearly dry state, redissolve it with methanol, and pass through a 0.22 μm filter membrane to be tested.

Method 2:GB5009.284-2021 Detection of vanillin, methyl vanillin, ethyl vanillin and coumarin in food

Weigh 1 g of milk powder sample (accurate to 0.01 g) into a 50 mL test tube, add 10 mL of water and trace hydrochloric acid solution, put the test tube on a 12-positions disc-shaped test tube holder, set the MultiVortex method program, and vortex for 1 min. After running, the samples begin to mix.

It will automatically prompt after the preset running time is over,even is no one there.

After the first vortex, add 20 mL acetonitrile into the test tube and vortex again for 1 min.

Add 5 g sodium chloride and swirl for 2 min after ultrasonic treatment.

After centrifugation, take the supernatant into the test tube, transfer the test tube to MFV Smart Nitrogen Concentrator, blow the nitrogen at 40℃ until it is nearly dry up, alarm automatically after the concentration, and set the volume to be measured.
